Volvo FM specifications

Everything you need to know about the Volvo FM, in detail.

Powertrain

Find specifications about engines, transmissions, rear axles (including ratios), powertrain combinations and power take-offs.

Heavy Duty Electric – power/torque



D11K (EU6) – power/torque


Net output according to: EC 582/2011

Electric​

Volvo FM

Performance

Up to 330–490 kW (450–666 hp) continuous power

Range​

Up to 300 km range

Charging time (full charge​)

9.5h with AC (43 kW) 2.5h with DC (250 kW)

Battery capacity

180–540 kWh, 4–6 batteries

Driveline

2–3 electric motors, I-Shift gearbox



Diesel

D11

D13

Emission standard

Euro 6

Euro 6



No. of cylinders​

6

6



Displacement

10.8 dm³

12.8 dm³



Stroke

152 mm

158 mm



Bore

123 mm

131 mm



Compression ratio

18.0:1

18.0:1



Economy revs

1000–1500 r/min

900–1400 r/min



Exhaust brake effect

155 kW

175 kW



Engine brake effect*

270 kW (2300 r/min)

340 kW (2300 r/min)



Oil filters

2 full-flow

2 full-flow



Oil change volume, incl. filter

35 l

35 l



Cooling system, total volume

22 l

24 l




*option

Fuel prerequisites


Sulphur free fuel (EN590, max 10 ppm sulphur)



D11K 380 hp (280 kW)






Max power at 1700–1800 r/min

380 hp




Max torque at 950–1400 r/min

1800 Nm




D11K 430 hp (317 kW)




Max power at 1700–1800 r/min

430 hp




Max torque at 1000–1400 r/min

2050 Nm




D11K 460 hp (338 kW)






Max power at 1700–1800 r/min

460 hp




Max torque at 1050–1400 r/min

2200 Nm


 D13K 500 hp (368 kW)
 Max power at 1530-1800 r/min500 hp
 Max torque at 980-1270 r/min2500 Nm


I-Shift

12-speed splitter and range gearbox with automated gear changing system. I-Shift can be fitted with a compact retarder, power take-off, emergency power steering pump and oil cooler. It’s also possible to order I-Shift with crawler gears, ultra-low crawler gears and reverse multispeed.

Type

Top Gear

Engine torque (Nm)

GCW approval (t)

AT2612

Direct

2600

100



I-Shift Dual Clutch specifications

Type

Top Gear

Engine torque (Nm)

GCW approval (t)

SPO2812

Overdrive

2800

80



Type

Axle

Gear

Max torque (Nm)

Max axle/bogie load (t)

GCW approval (t)

Single reduction

RTS2370B

Tandem

Hypoid

3550

23

80

RTS2310A

Tandem

Hypoid

3550

23

100



 * For Volvo FM 4x4.

Rear axle ratios

Solo axles

RSS1370A

2.31:1

2.47:1

2.64:1

2.85:1

3.08:1





Tandem axles

RST2370B

RTS2310A

2.43:1

2.06:1

2.57:1

2.17:1

2.83:1

2.31:1

3.09:1

2.47:1

3.40:1

2.64:1

3.78:1

2.85:1

4.13:1

3.08:1

4.50:1

3.36:1

5.14:1

3.70:1

5.67:1

4.11:1

6.17:1

4.63:1



Powertrain combinations (EU 6)



D11K380 (EU6)

D11K430 (EU6)

D11K450 (EU6)

D13K460 (EU6)

D13K500 (EU6)

I-Shift

AT2612F

I-Shift Dual Clutch

SP02812







Single reduction axles

RTS2370B

RTS2310A





Torque output

Ratio

EPTT650

650 Nm*

1.26:1



EPTT1000

1000 Nm*

1.26:1




* Torque output both when driving and standing still.

Engine-mounted

PTER-DIN: Rear-mounted engine power take-off for direct drive of a
hydraulic pump.

PTER1400: Rear-mounted engine power take-off with flange connection
for hydraulic pump.

PTER100: Rear-mounted engine power take-off with flange connection
for hydraulic pump.

Clutch-dependent power take-offs

PTR-F: Connecting flange attachment and low-rev or high-rev.

PTR-FL/FH: Connecting flange attachment and low-rev or high-rev.

PTR-D/PTR-DM/PTR-DH: Low/medium/high-rev with DIN-connection for direct attachment of a hydraulic pump.

PTRD-F: High-rev with connecting flange attachment for direct-fitted propshaft.

PTRD-D: High-rev with dual drive. DIN connection front and rear for direct attachment of hydraulic pumps.

PTRD-D1: High-rev with dual drive. Connecting flange attachment at the rear and DIN attachment at the front.

PTRD-D2: High-rev with dual drive rear and single drive front. Two connecting flange attachments rear and one DIN attachment at the front.

Exterior & Interior

Find specifications about cab measurements, cab heights above the ground and features.

Three different versions of exterior trim are available to suit different needs.

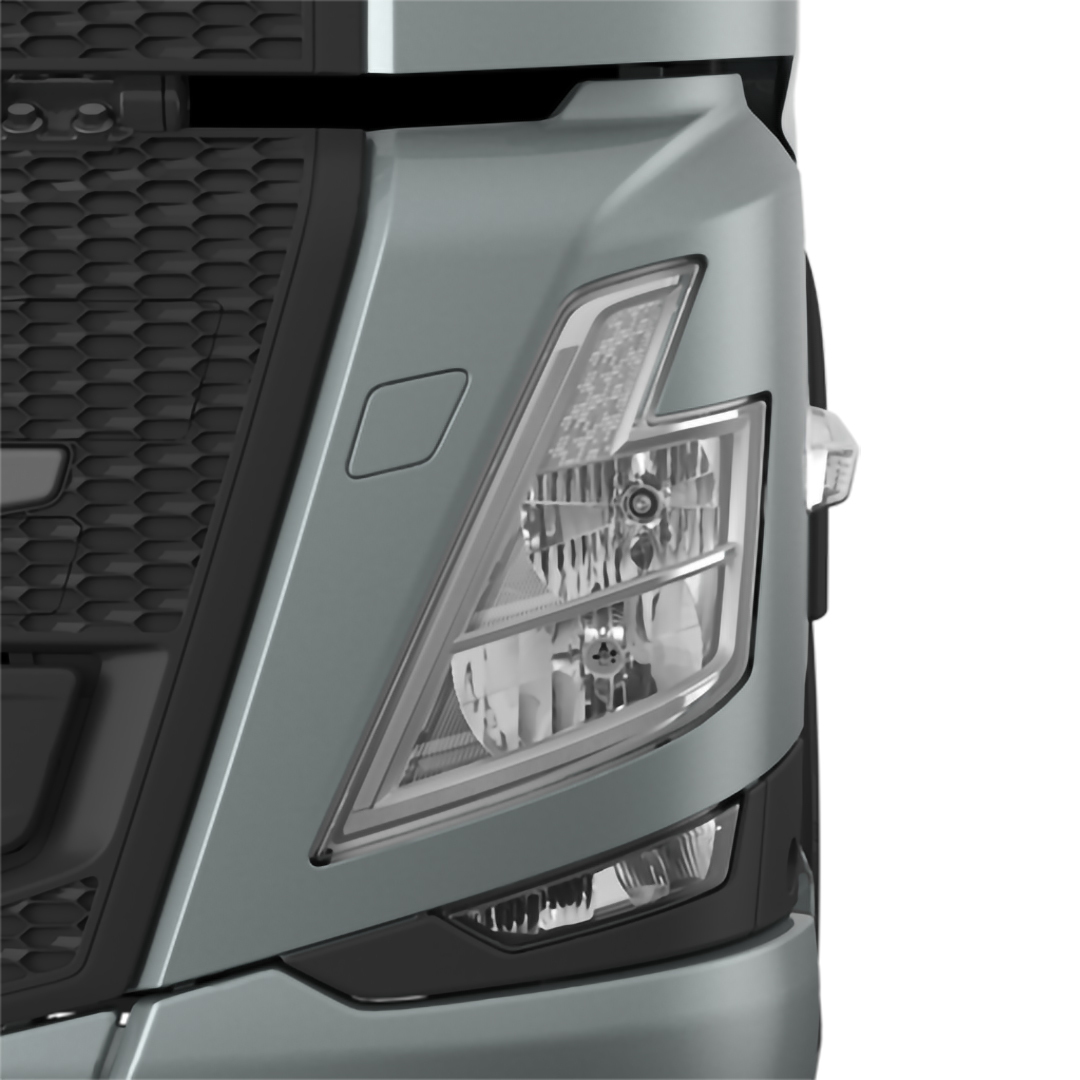

Volvo FM with basic exterior trim level

Basic

Thunder gray grille and door handles. Chrome headlamps. Lightning gray sun visor, mirror covers and bumper.

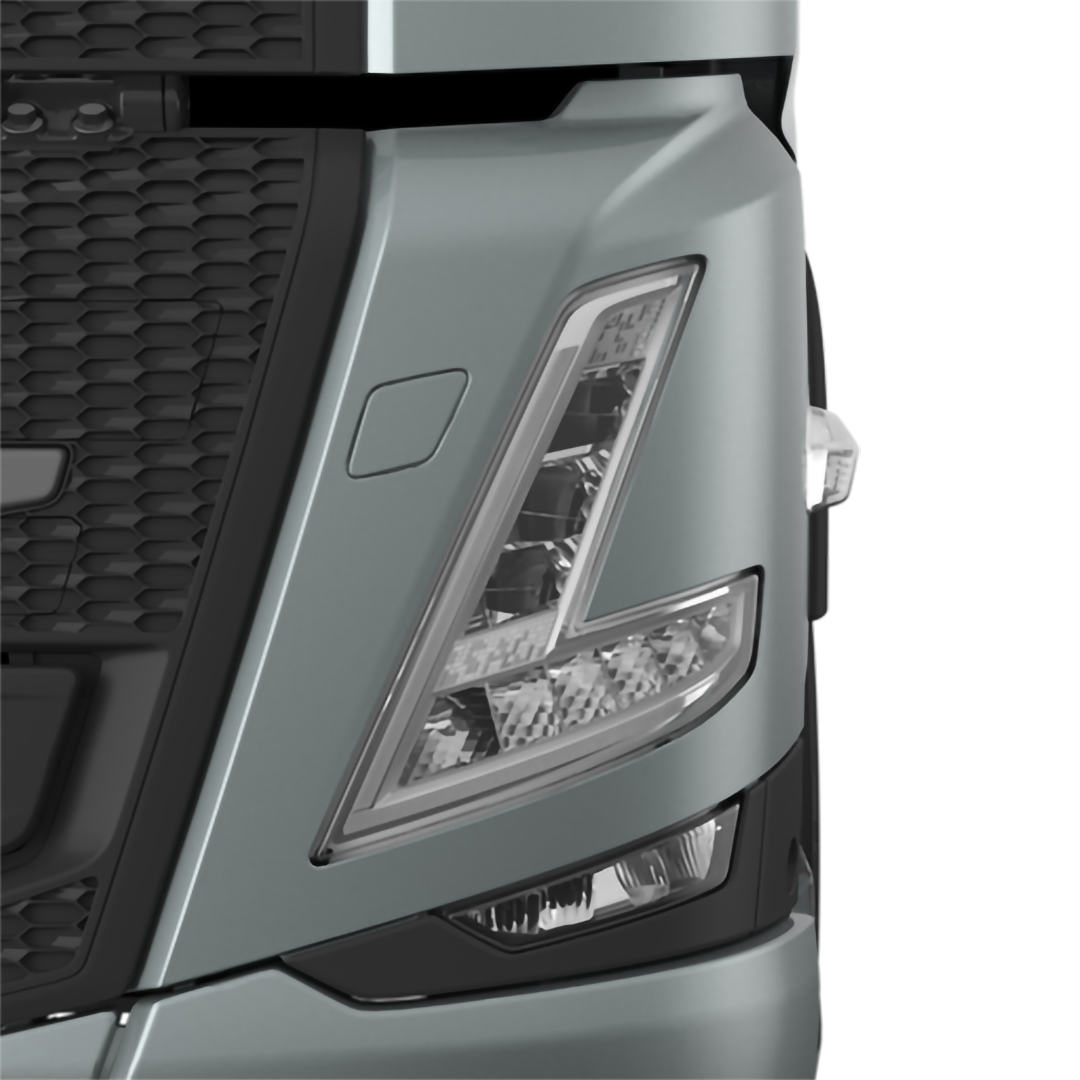

Volvo FM with enhanced exterior trim level

Enhanced

Thunder gray grille. Cab colored mirror covers, door handles, sun visor and bumper. Chrome headlamps.

Volvo FM is available with vinyl and textile trim.

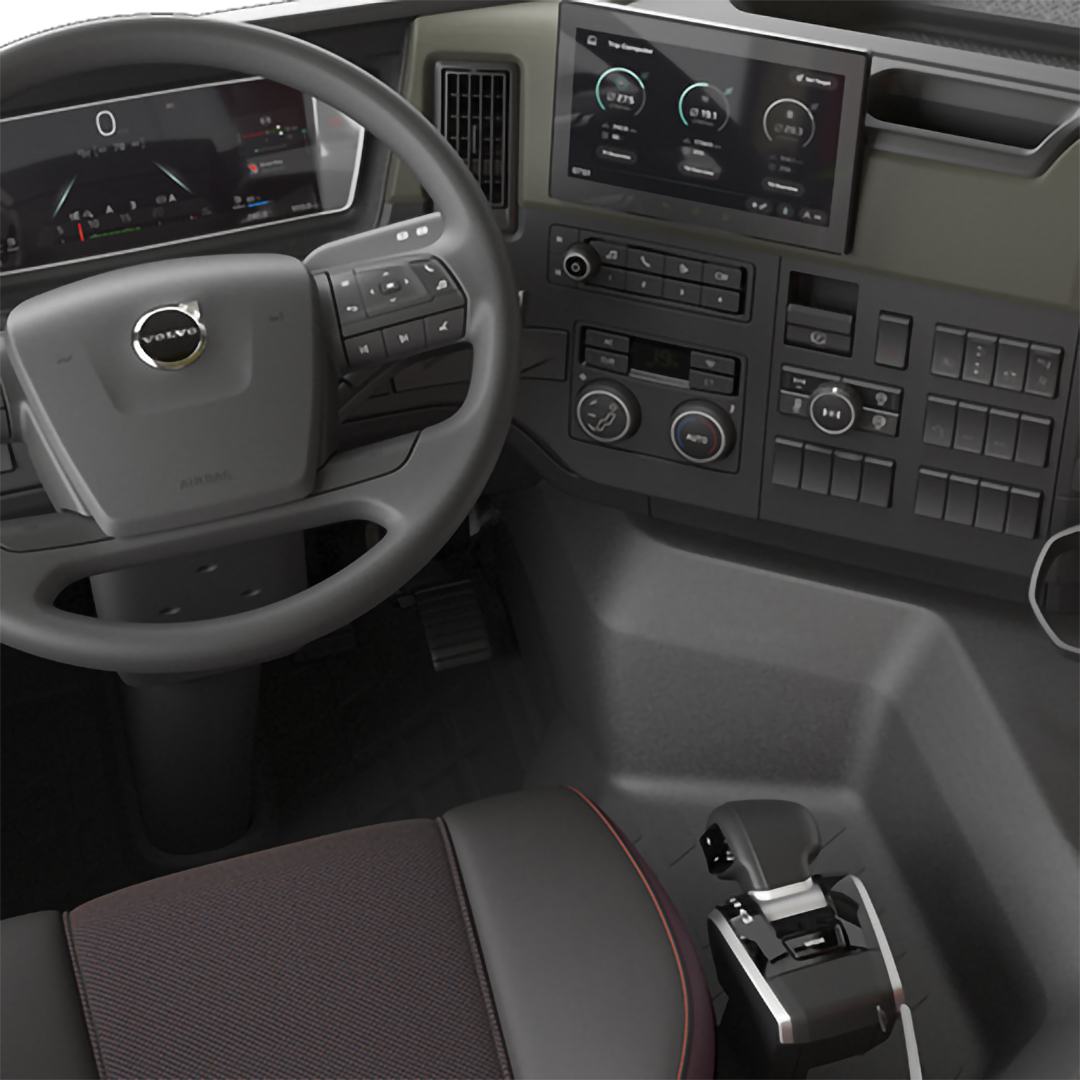

Volvo FM with vinyl and textile trim robust, interior trim level

Vinyl and textile trim Robust

Durable materials in vinyl and textile with a modern color scheme that matches the various parts of the interior trim.

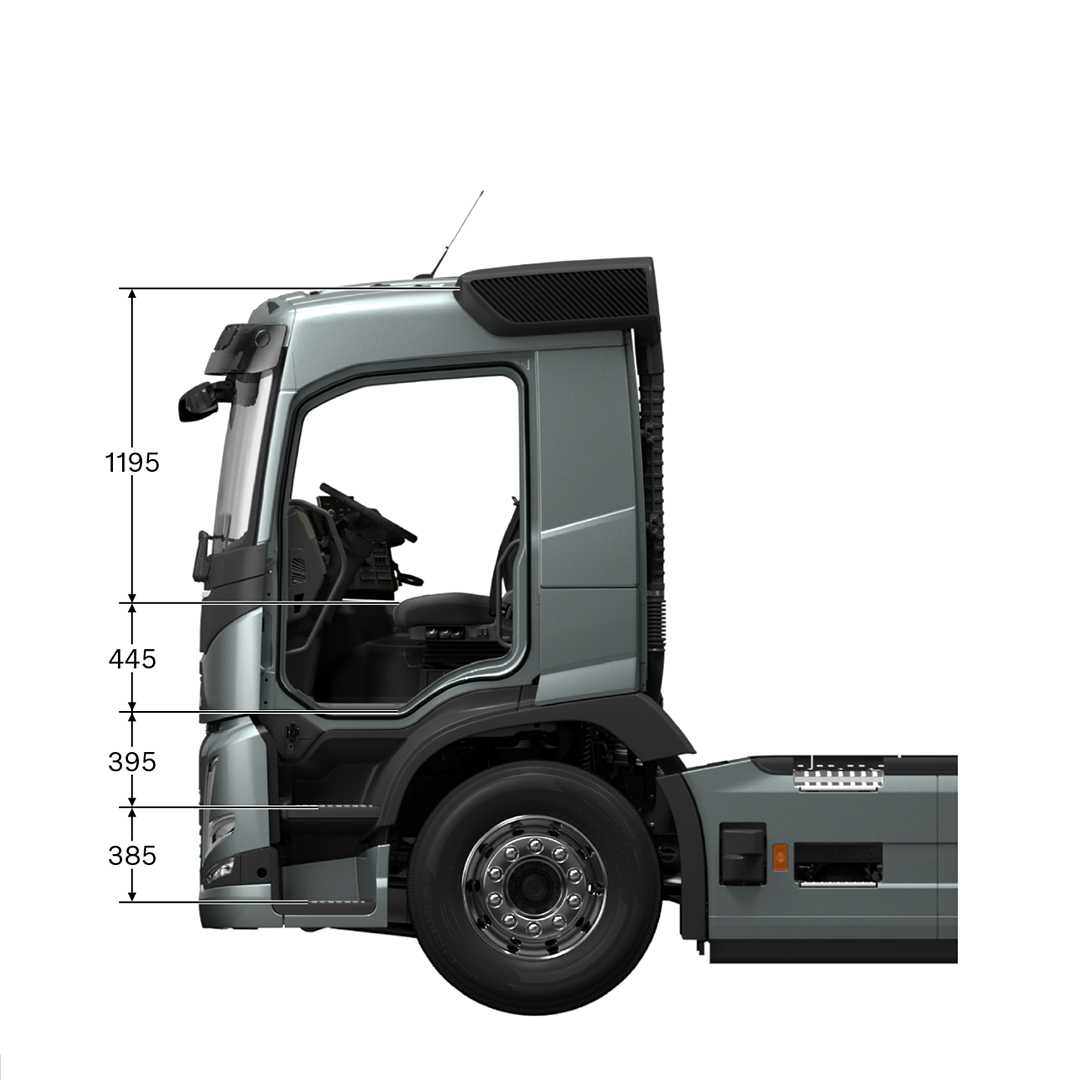

Volvo FM day cab with measurements, viewed from the side

Day cab

Day cab (FM-DAY) with comfortable and ergonomic driver area. Interior height 164 centimetres: 120 centimetres on the engine compartment cover.

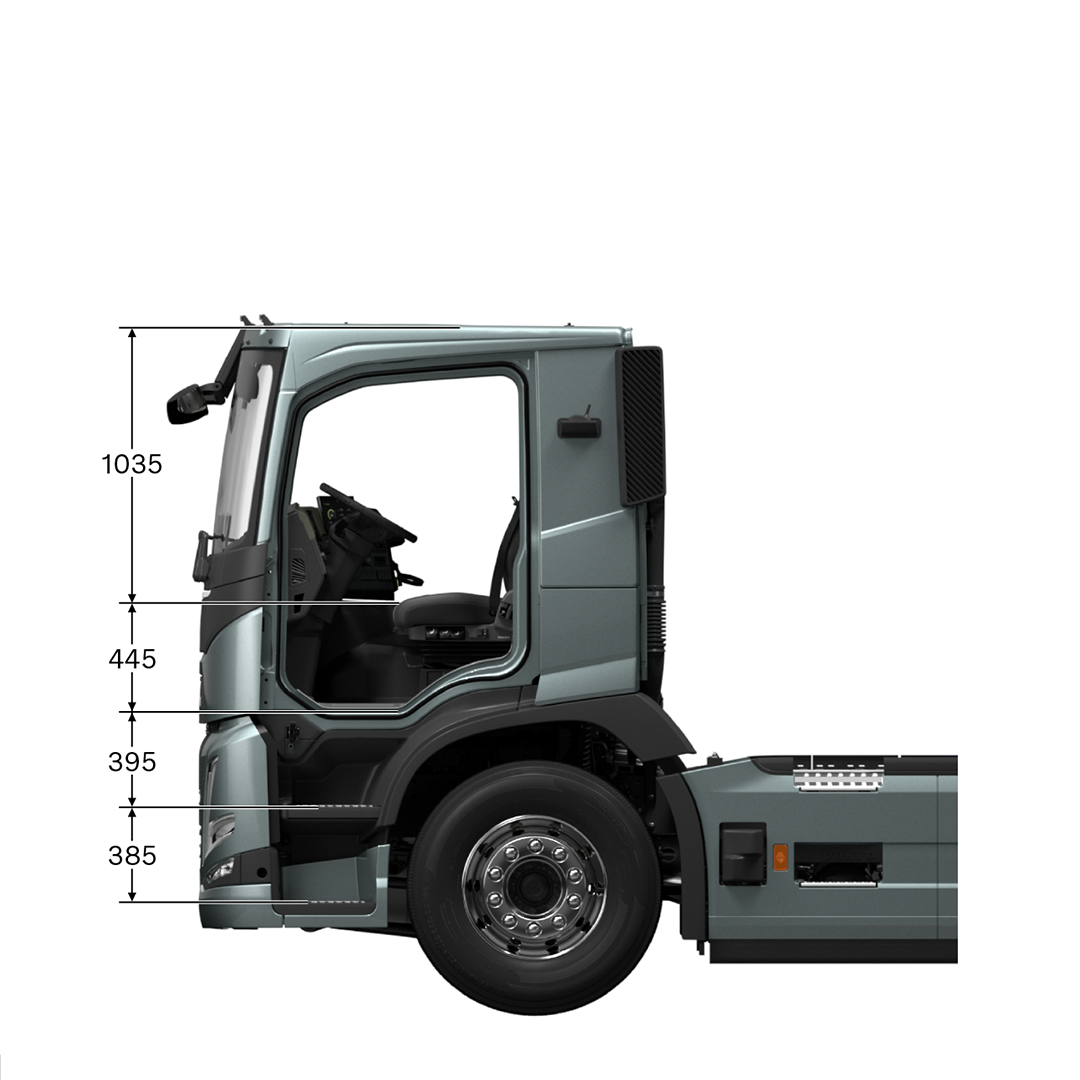

Volvo FM low day cab with measurements, viewed from the side

Low day cab

Low day cab (FM-LDAY) is needed for applications such as mining, refrigerated bodies, pumps and cranes. Interior height 148 centimetres: 104 centimetres on the engine compartment cover.

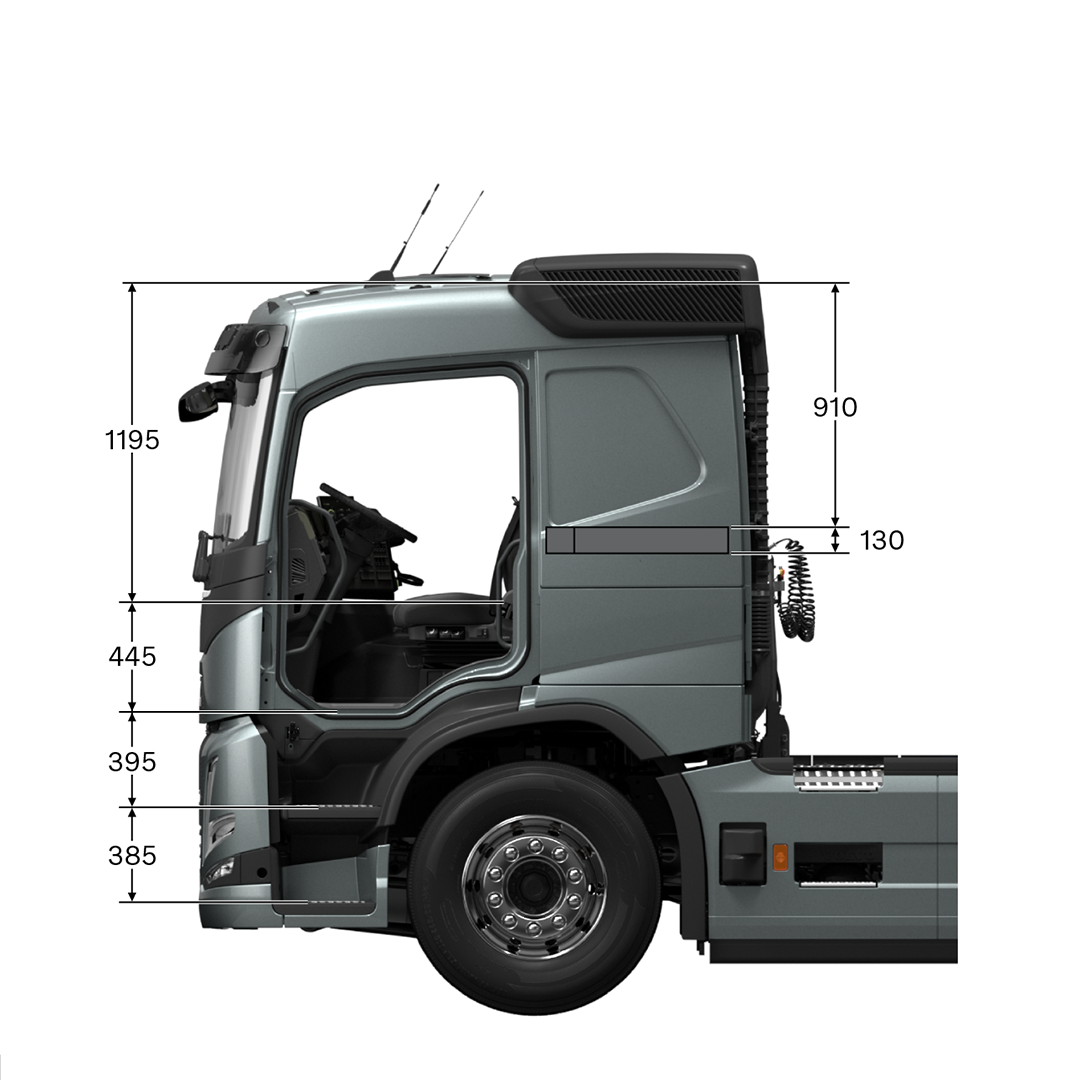

Volvo FM sleeper cab with measurements, viewed from the side

Sleeper cab

Sleeper cab (FM-SLP) with comfortable overnight accommodation for one person. Interior height 164 centimetres: 120 centimetres on the engine compartment cover.

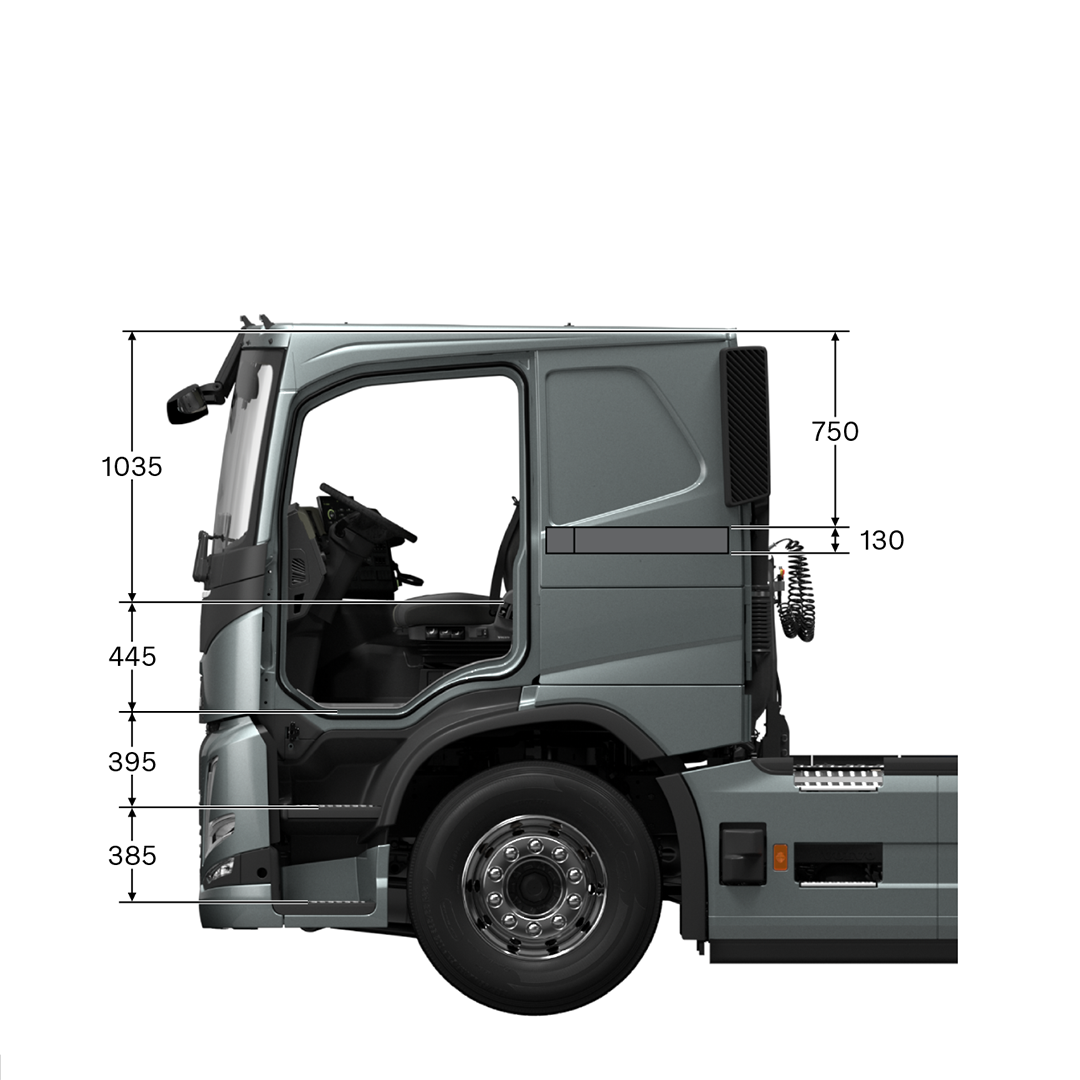

Volvo FM low sleeper cab with measurements, viewed from the side

Low sleeper cab

Low sleeper cab (FM-LSLP) with lowered roof provides added load space above the cab. Interior height 148 centimetres: 104 centimetres over the engine compartment.

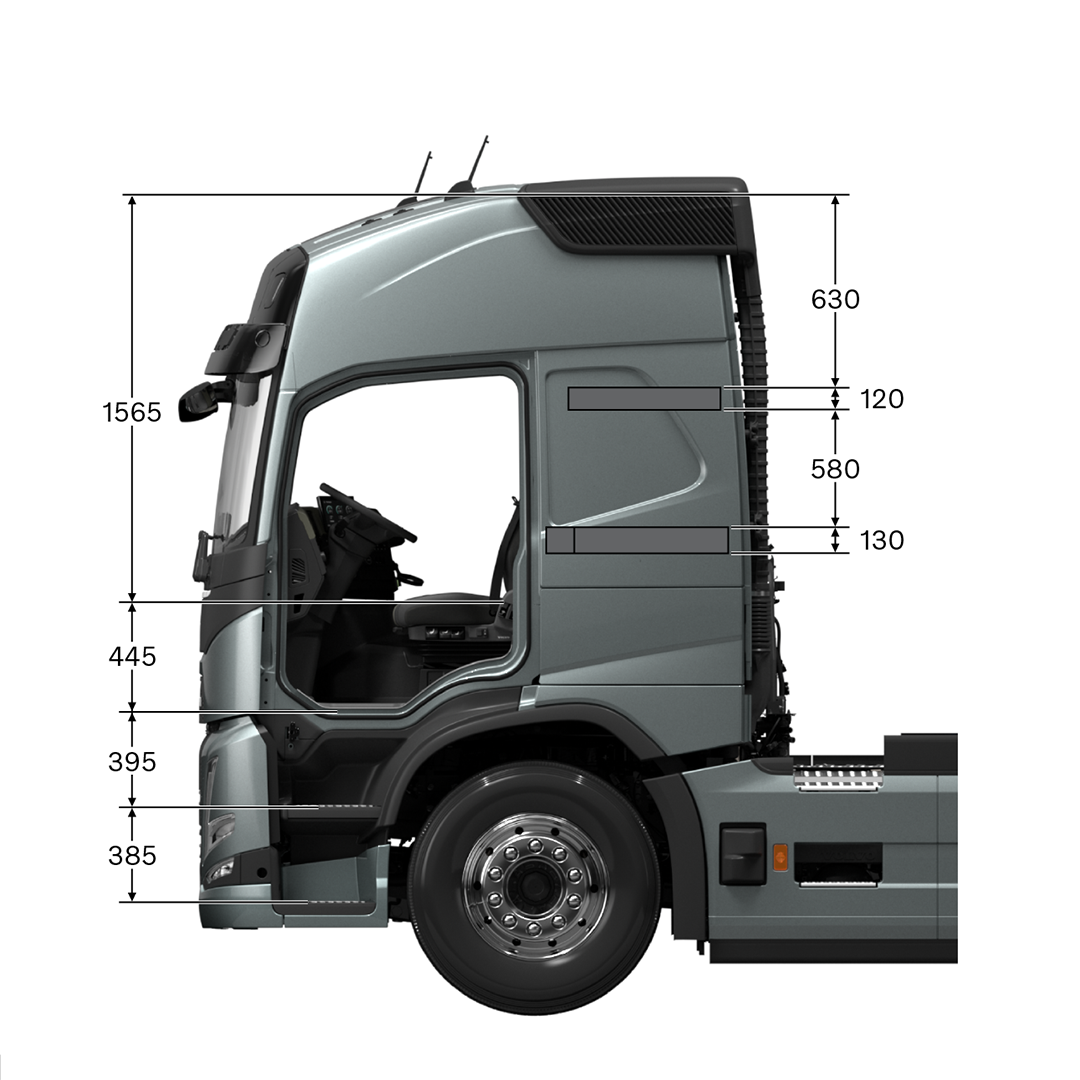

Volvo FM globetrotter cab with measurements, viewed from the side

Globetrotter cab

Globetrotter cab (FM-HSLP) offering comfortable overnight accommodation for up to two people. The cab features extra storage space higher up. Interior height 201 centimetres: 157 centimetres on the engine compartment cover.

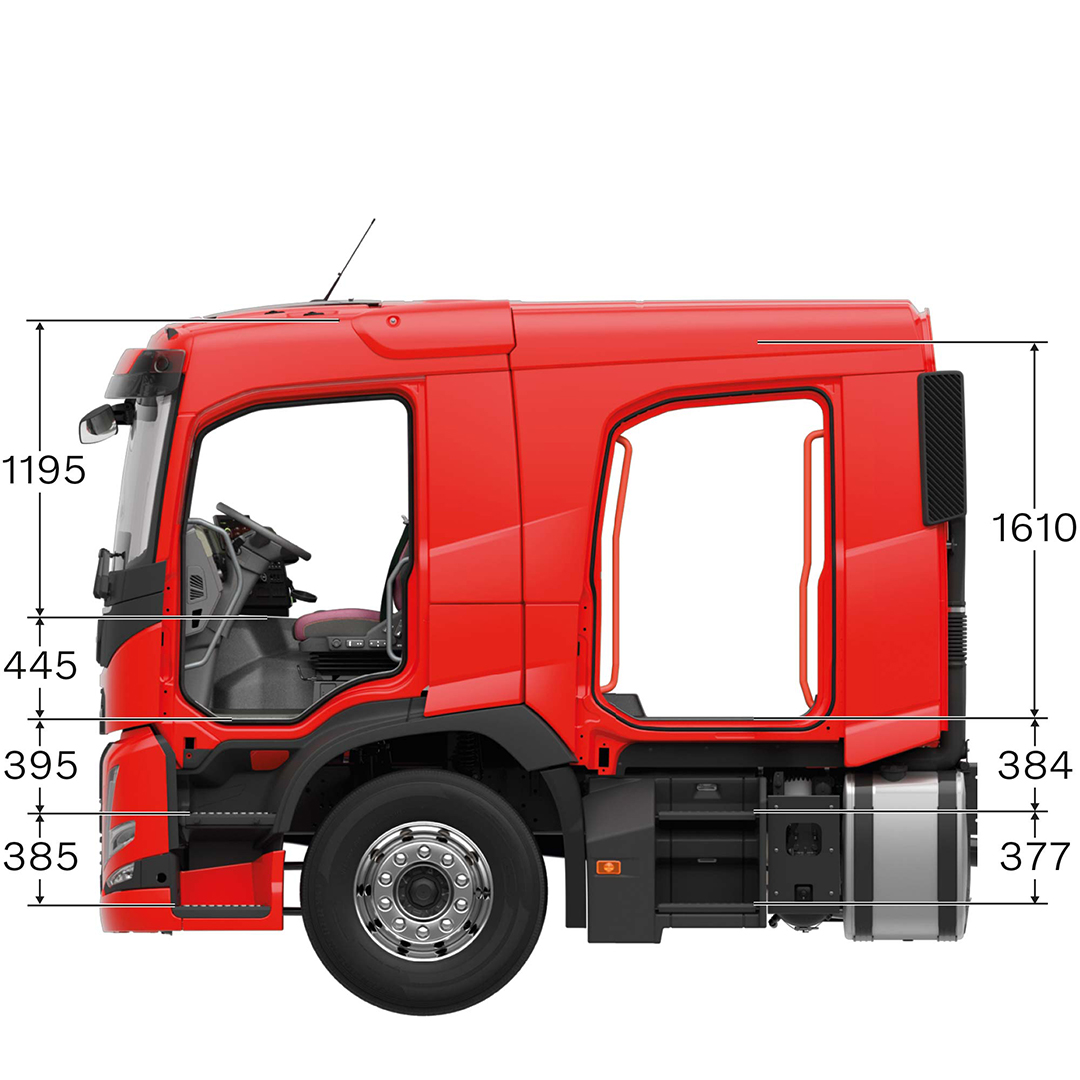

Volvo FM crew cab with measurements, viewed from the side

Crew cab

Crew cab with ample space for several additional passengers up to 7 persons. Interior height 1590 millimetres.

Four-point cab suspension

Choose from coil springs with dampers, front coil springs and rear air suspension, or air suspension all round.



Air intakes

Air intake positioned on the left side and available in high or low placement options.



Cab Colors

Around 650 variants to choose from.



Driver’s seat

Equipped with Robust (vinyl) upholstery. The seat’s total adjustment scope is 200 millimetres fore-aft, and 100 millimetres vertically. The driver’s seat is fitted as standard with a head restraint, adjustable and fold-down backrest, vertical and fore-aft adjustment, adjustable lumbar support and adjustable seat angle.



Passenger seat

Equipped with robust vinyl upholstery Robust (vinyl). The passenger seats are equipped as standard with head restraints.



Beds

Lower bed measuring 70×200 centimetres.16 centimetres mattress with pocket springs and excellent comfort. Two varieties to choose from: Semi-firm and Firm.Two types of overlay mattress protector available, that improve comfort and help you make the bed more easily. Comfort upper bed dimensions: 70×190 centimetres

Interior storage

The space above the windscreen consists of two storage compartments with roller doors as well as four ISO slots. Under the bed in the sleeper cab and the Globetrotter cab you will find two large storage compartments, accessible from the outside and one large (44 l volume) accessible by lifting the mattress and lid; in the sleeper section you can find two storage spaces for magazines and small items. The dashboard contains four open storage spaces, a small storage box, a DIN slot storage, a bird bath and a bottle holder. The day-cab can be fitted with 60 litres storage with jalousie openings for helmets, lunch boxes etc.



Exterior storage

Storage space accessible from the outside can be found behind the passenger and driver seats.



Roof hatch

The cab is equipped with a roof hatch that can be opened 50 millimetres. On the inside there is a perforated sunblind, which also acts as an insect net when the hatch is open. The roof hatch can be manually or electrically manoeuvred (option). A roof hatch in steel is also available, intended for construction or rough usages.



Steering wheel

Comes in 450 mm in diameter. The steering wheel’s height can be adjusted by up to 90 mm and the angle can be adjusted by 28°. With neck tilt (option) the steering wheel can be adjusted in vertical position between -5° and +15° – increasing the driver comfort. Integrated controls in the steering wheel provide safe and comfortable operation of cruise control, horn, phone and the functions in the Instrument Display and Side Display.



Climate system

Two alternative climate systems cover all needs:

  • Air conditioning with manual control (MCC).
  • Air conditioning with automatic temperature control (ECC/ECC2).

The climate system can also be complemented with cab and engine parking heaters.

Chassis

Find specifications about chassis heights, max front axle load, rear suspension, coupling heights, tractors, chassis features and brakes.

Med

approx 900 mm

High

approx 1000 mm





Air

Leaf

Med

10/20*

9

High

10/20*

10/20*



*With dual front axles FAL20

Type

Axels

Suspension

Axel/bogie load

Reduction

Pusher / tag axels

Bogie

RADD-GR

6×4/8×4

Air

21 t

Single/hub




Centrally mounted, semi-undermounted and undermounted towbars for centre-axle trailers. Towbars can be fitted at intervals of 25 millimetres.

Fuel tanks

Euro6: Aluminium tanks in volumes from 190 to 690 litres

AdBlue tanks

Plastic. Volumes upto 150 litres

Brakes

EBS (Electronically-controlled Brake System) provides superior response, performance and brake feel, while providing access to a number of handy features. EBS is now available both for disc brakes and Z-cam drum brakes (for a selected range of axle configurations and chassis heights). Upgrade your brake system by adding the EBS Medium package or any of the additional options. EBS is standard on all specifications.



EBS medium

In addition to the EBS Standard package, EBS Medium adds the following features:



EBS status control

EBS status monitoring via the TEA2+ vehicle electronic system and Volvo Tech Tool.



Lining wear analysis

Brake lining warning – calculates the remaining mileage available with the current brake linings (only for disc brakes).



Automatic parking brake release

The parking brake is released when the driver pushes the accelerator pedal and a gear is selected (only I-Shift gearbox).





Additional options:

In addition to the program packages there are the following options:



Stretch brake

Enables the driver to request pulse braking of the trailer. The brake is then automatically activated and the risk of jack-knifing is minimised.



ESC (Electronic Stability Control)

The brake stability system applies the brakes individually on each wheel, thereby providing stability for the entire vehicle combination and counteracting jack-knifing, rollover and trailer swing. ESC fulfills the legislation of Electronic Vehicle Stability Control, and is available for 2- and 3-, 4- and 5-axle vehicles.





Volvo Dynamic Steering

Active steering system with torque overlay. Delivers more steering force at low speeds, reduces steering kicks and keeps the steering wheel straight forward when braking on split friction. The steering wheel returns automatically to neutral position both when driving forward and when reversing. Volvo Dynamic Steering is now available for all axle configurations, including trucks with dual front axles. It’s also available in combination with individual front suspension.

Pusher axles
Available in fixed and actively steered variants for both tractors and rigids. Axle load: 4.5, 7.5 or 9 tonnes.


Tag axles
Available in several configurations – fixed with single or dual wheels, self steered or actively steered. Axle load: 7.5, 9.5 or 10 tonnes.

Tandem Axle Lift

Allows the rearmost drive axle on the tandem bogie to be disengaged and raised, to reduce fuel consumption and turning radius. By pushing a button on the dashboard, the driver can raise the axle when the truck is unloaded. When the truck is loaded, the axle automatically lowers itself and engages. Tandem Axle Lift is available for 6×4 and 8×4 configurations (with a tandem bogie) equipped with disc brakes.


Axle configurations Electric

Tractor: 4x2, 6x4

Rigid: 6x4, 8x4 dual front axles

All axles are air suspended

Data sheets

Data - everything you'll need. Download data sheets in PDF format for the Volvo FM from the following links.

  • FM Rigid
  • FM Tractor
FM Tractor
FM Rigid
