Powertrain specifications for Volvo FH16

Engines



D16G (EU5)

D16K (EU6)

Emission standard

Euro 5

Euro 6

No. of cylinders

Displacement

16.1 dm³

16.1 dm³

Stroke

165 mm

165 mm

Bore

144 mm

144 mm

Compression ratio

16.8:1

16.0:1

Economy revs

1000–1500 r/min

950–1400 r/min

Exhaust braking power

1000–1500 r/min

230 kW (2200 r/min)

VEB+ effect

425 kW (2200 r/min)

470 kW (2200 r/min)

VEB+

option

option

Oil filters

2 full-flow, 1 bypass

2 full-flow, 1 bypass

Oil change volume, incl. filter

42 l

42 l

Cooling system, total volume

48 l

48 l

D16G (EU5) – Power/torque

Net output according to: EC 582/2011

D16G600 (441 kW)



Max power at 1500–1900 r/min

600 hp

Max torque at 1000–1500 r/min

2800 Nm

D16G700 (515 kW)



Max power at 1550–1800 r/min

700 hp

Max torque at 1000–1550 r/min

3150 Nm

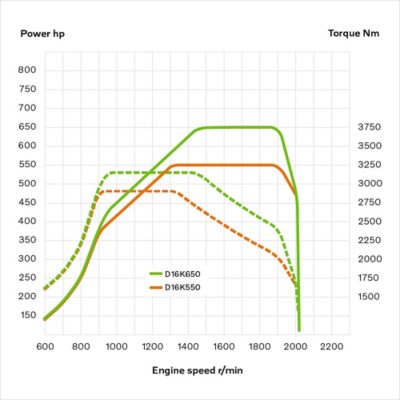

D16K – power/torque

Net output according to: EC 582/2011

D16K550 (405 kW)



Max power at 1380–1700 r/min

550 hp

Max torque at 900–1380 r/min

2800 Nm

D16K650 (479 kW)



Max power at 1450–1700 r/min

650 hp

Max torque at 950–1450 r/min

3150 Nm





I-Shift

12-speed splitter and range gearbox with an automated gear changing system. I-Shift can be fitted with a power take-off and oil cooler.

Specifications

Type

Top gear

Engine torque (Nm)

GCW approval (tonnes)

ATO3112F

Overdrive

3150

100





Rear axles

Type

Axle

Gear

Max torque (Nm)

Max axle/bogie load (tonnes)

GCW approval (tonnes)

Single reduction



RTS2370B

Tandem

Hypoid

3550   23

80

RTS2310A

Tandem

Hypoid

3550

23

100

Hub reduction



RTH2610B

Tandem

Conical spiral cut

3550

26

100

Rear axle ratios

RTS2370B

RTS2310A

RTH2610B

2.43:1

2.06:1

3.33:1

2.57:1

2.17:1

3.46:1

2.83:1

2.31:1

3.61:1

3.09:1

2.47:1

3.76:1

3.40:1

2.64:1

3.97:1

3.78:1

2.85:1

4.12:1

4.13:1

3.08:1

4.55:1

4.50:1

3.36:1

5.41:1

5.14:1

3.70:1

6.18:1

5.67:1

4.11:1



6.17:1

4.63:1



Powertrain combinations



D16G600 (EU5)

D16G700 (EU5)

D16K550 (EU6)

D16K650 (EU6)

I-Shift



ATO3112F

Single reduction axles



RTS2370B

RTS2310A



Hub reduction axles



RTH2610B
